SNAP3 is not opening my L1C data

Mussiella · April 13, 2016, 11:33am

I am trying to open L1C sentinel data in SNAP 3 and he is giving me an error massage below which says Unexpected Exception, Can some body help how to fix this error. Thank you.

jmalik · April 13, 2016, 12:56pm

Can you please upload the file pointed to by the error message please ?
You can upload it here, use the Upload icon in the message editing toolbar.

Mussiella · April 14, 2016, 2:45pm

Apologies, the data was somehow corrupted in downloading and its now working after I re-download it, I can open it. Thank you Jmalik for your response.

Mussiella · April 15, 2016, 11:36am

Hi SNAP Team,

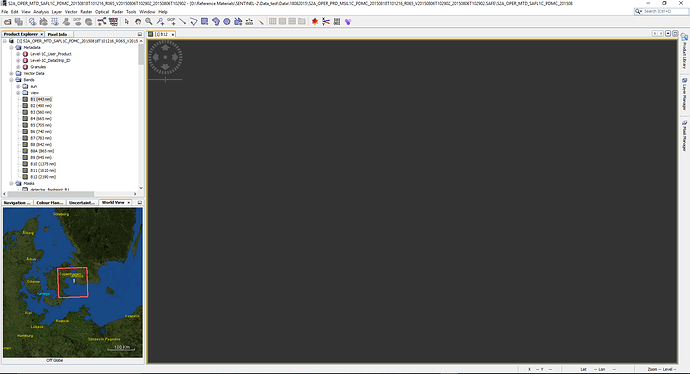

Sorry I thought I succeeded opening my level 1C data yesterday but actually not. He can open the xml data but when I try to display individual bands or RGBs it just appears as black and I got this problem only after I upgrade my SNAP to SNAP3 yesterday. Please help how to fix this.

Nicolas · April 15, 2016, 2:05pm

Could you please send us the log file and the full path to the product? I see you’re on Windows, what version of Windows?

Mussiella · April 15, 2016, 3:04pm

Here is it Nicolas:
I am on Windows 10 and the Full path and log file for data is:
D:\Reference Materials\SENTINEL-2\Data_test\Data\18082015\S2A_OPER_PRD_MSIL1C_PDMC_20150818T101216_R065_V20150806T102902_20150806T102902.SAFE
messages.log (141.1 KB)

Mussiella · April 19, 2016, 8:08am

Hi,
Can some one help with the above issue please. I have uploaded the log file the full path to the data. Thank you

Mussiella · April 19, 2016, 9:05am

Hi SNAP team,
Could you please advise me on the issue, I have uploaded the necessary information, I can open the level 1C data in SNAP 3 but if I try to display it its appearing only black screen. Thank you.

carminemaffei · April 28, 2016, 9:28am

Good day SNAP Team,

I experience the same issue initially reported by Mussiella, i.e. I cannot open Sentinel-2 L1C data (xml file). SNAP reports this error:

java.lang.NullPointerException
at org.esa.s2tbx.dataio.s2.ortho.Sentinel2OrthoProductReader.getMosaicProduct(Sentinel2OrthoProductReader.java:207)
at org.esa.s2tbx.dataio.s2.Sentinel2ProductReader.readProductNodesImpl(Sentinel2ProductReader.java:128)
at org.esa.snap.core.dataio.AbstractProductReader.readProductNodes(AbstractProductReader.java:169)
at org.esa.snap.core.dataio.ProductIO.readProduct(ProductIO.java:158)
at org.esa.snap.rcp.actions.file.ReadProductOperation.run(ReadProductOperation.java:37)
at org.netbeans.modules.progress.ui.RunOffEDTImpl$3.run(RunOffEDTImpl.java:275)
at org.openide.util.RequestProcessor$Task.run(RequestProcessor.java:1423)
[catch] at org.openide.util.RequestProcessor$Processor.run(RequestProcessor.java:2033)

SNAP Version 3
S2 toolbox version 3.0.2
Platform: Mac OS X 10.7

Thanks for your support!

jmalik · April 28, 2016, 2:58pm

@Mussiella can you please try moving the product at the root of your HDD.
There is a known issue for Sentinel 2 products which have too long paths for Windows to manage (this will be fixed later by the Ground Segment).

jmalik · April 28, 2016, 3:02pm

@carminemaffei this might be a completely unrelated issue

Please open a shell and execute this :

$ ~/.snap/auxdata/openjpeg/openjpeg-2.1.0-macosx/bin/opj_decompress
$ ~/.snap/auxdata/openjpeg/openjpeg-2.1.0-macosx/bin/opj_dump

and post the results here

carminemaffei · April 28, 2016, 3:24pm

@jmalik thank you for your reply. Both commands provide a “Segmentation fault: 11”

carminemaffei · April 28, 2016, 3:44pm

Hi Julien,

These seem to work:

Barbagianni:~ carmineb$ ./Downloads/openjpeg-2.1.0-static-macosx/bin/opj_compress
[ERROR] Required parameters are missing
Example: ./Downloads/openjpeg-2.1.0-static-macosx/bin/opj_compress -i image.pgm -o image.j2k
Help: ./Downloads/openjpeg-2.1.0-static-macosx/bin/opj_compress -h
Barbagianni:~ carmineb$ ./Downloads/openjpeg-2.1.0-static-macosx/bin/opj_opj_compress opj_decompress opj_dump
Barbagianni:~ carmineb$ ./Downloads/openjpeg-2.1.0-static-macosx/bin/opj_decompress
[ERROR] Required parameters are missing
Example: ./Downloads/openjpeg-2.1.0-static-macosx/bin/opj_decompress -i image.j2k -o image.pgm
Help: ./Downloads/openjpeg-2.1.0-static-macosx/bin/opj_decompress -h
Barbagianni:~ carmineb$ ./Downloads/openjpeg-2.1.0-static-macosx/bin/opj_dump [ERROR] Required parameter is missing
Example: ./Downloads/openjpeg-2.1.0-static-macosx/bin/opj_dump -i image.j2k
Help: ./Downloads/openjpeg-2.1.0-static-macosx/bin/opj_dump -h

I brutally replaced this distribution of openjpeg into my .snap folder, and now I can successfully open L1C product!

Thanks for your help. Please let me know how I can help with further tests

Regards,

Carmine

jmalik · April 28, 2016, 3:50pm

@carminemaffei Many thanks for early testing, I’m preparing a SNAP module update

carminemaffei · April 28, 2016, 3:58pm

I volunteer for testing on this platform!

carminemaffei · May 23, 2016, 10:28am

I confirm that the latest update of the S2 toolbox, as of today, solves my problem

omran.alhammadi · May 23, 2016, 1:40pm

Hi All,

I just update SNAP to the latest version 3.0 but unfortunately I still cannot open L1C data

is there any solution for that

Regards
Omran

Nicolas · May 23, 2016, 1:47pm

Could you send us the full path to your product? There are sometimes problems with path under Windows.

omran.alhammadi · May 23, 2016, 1:49pm

C:\Users\user.name\Desktop\sentinel2_images\S2A_OPER_PRD_MSIL1C_PDMC_20160110T155054_R021_V20160110T085036_20160110T085036.SAFE

Nicolas · May 23, 2016, 2:06pm

Thanks for the path. There is indeed a problem with the path length, if you move your product up you should be able to open images. We’re also working on a module update to improve the way long path are handled (also fixing problems of path with special characters). It should be available within a couple of days.
