Accessing the fractional land-water mask for automation

development
1

Hi,
The fractional land_water mask seems essential to process S1 data. However this tool is, to my knowledge, not accessible through GPT graphs or snappy.
Is there a way to include it in the chain of processing?
Thanks

2

It is available.
just type

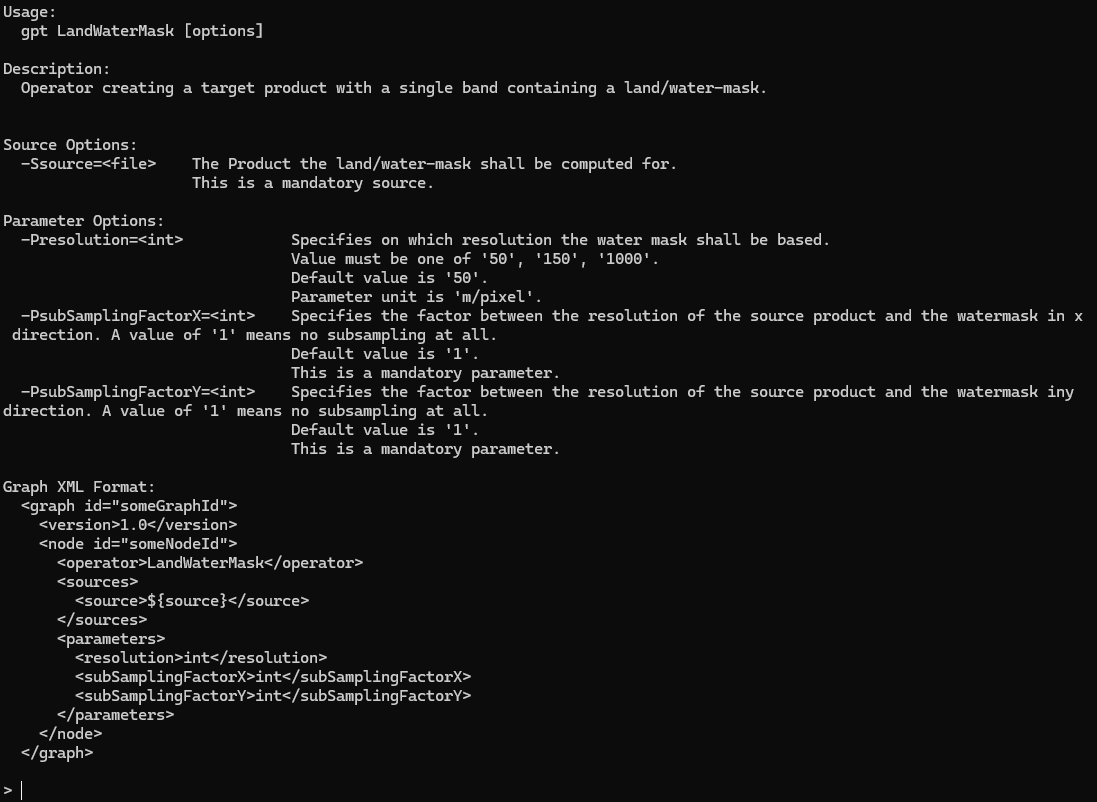

gpt LandWaterMask -h

and you get the gpt help for it.

image1097×802 22.4 KB

This way you can use it in graph, and you can call it from snappy knowing the operator name.

EOMasters_icon_60 Marco from EOMasters - Mastering Earth Observation - Kofi_cup_40x30

3

Hi,
The landwater mask and the fractional land-water mask are two different things. The second includes inland lakes which are essential for interferometry as they need to be removed.
Thanks

4

Actually not.
Here you can see the code for action which open the dialog.
As operator alias the LandWaterMask is used.

snap-desktop/snap-watermask-ui/src/main/java/org/esa/snap/processor/watermask/ui/WatermaskAction.java at 927193574c602b8a72bf424f9d407d6371fb04f3 · senbox-org/snap-desktop (github.com)

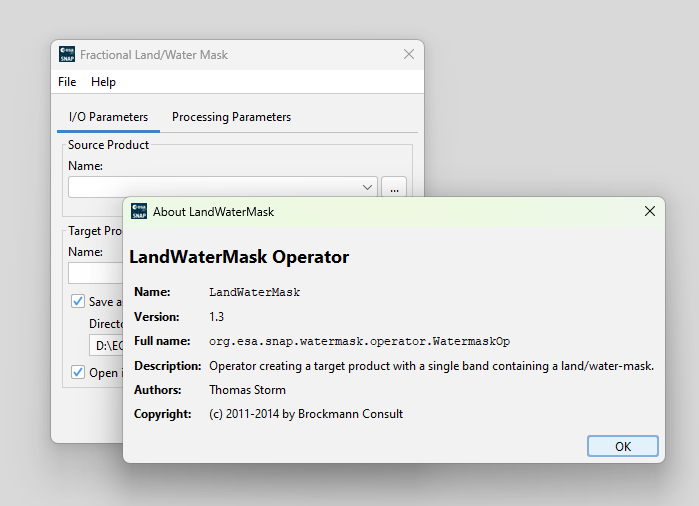

You can also open the about dialog of the fractional land-water mask. There the name of the operator is shown.

image699×506 29.1 KB

1 Like
5

Thanks,
I just have different behaviours if I use the LandWaterMask in the GUI vs the Fractional so I assumed these were different. I will give it a go.
Thanks for the clarifications.

1 Like
