Hello STEP community,
I’m encountering a persistent error when trying to perform DEM-Assisted Coregistration
with Cross-Correlation on COSMO-SkyMed SLC Stripmap data using SNAP 13 (latest update).
ERROR MESSAGE:
Cannot invoke “org.esa.snap.core.datamodel.RasterDataNode.getSourceImage()” because
“rasterDataNode” is null
SNAP VERSION:
-
SNAP 13.0.0 (fully updated via Help → Check for Updates)
-
Operating System: Windows [specifica la tua versione]
DATA SPECIFICATIONS:
-
Sensor: COSMO-SkyMed (CSK)
-
Product Type: SCS_B (Stripmap HImage)
-
Polarization: HH
-
Processing Level: Level 1A (SLC)
-
Master: 07-Sep-2018 (Orbit 60874, Track 99999)
-
Slave: 23-Sep-2018 (Orbit 61111, Track 99999)
-
Temporal Baseline: 16 days
PROCESSING WORKFLOW:
-
Opened both products in SNAP via File → Open Product
-
Launched: Radar → Coregistration → DEM-Assisted Coregistration with XCorr
-

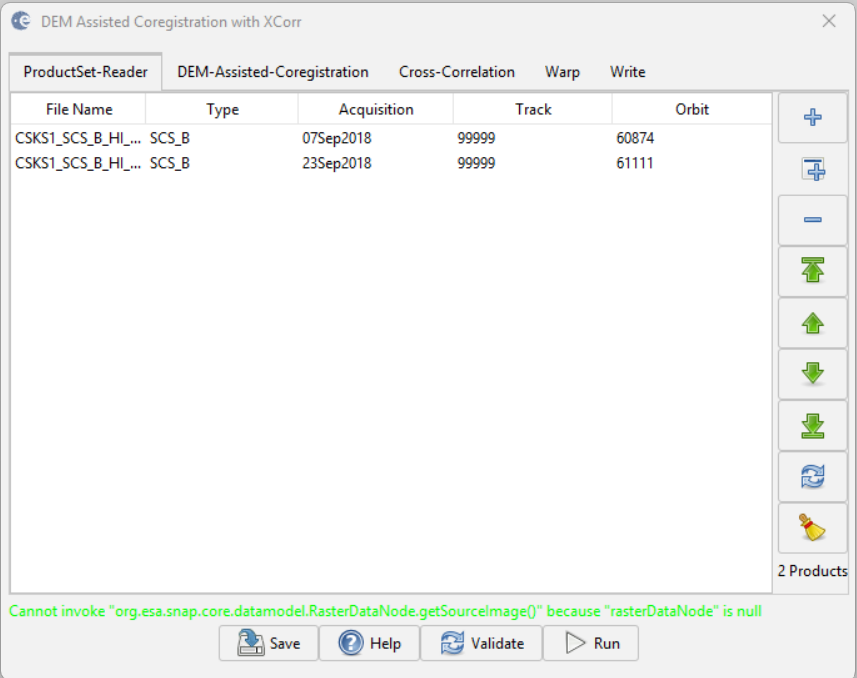

Added both products to ProductSet-Reader via drag-and-drop
-
Configured parameters (see screenshots attached)
-
Clicked “Run”
-
Error appears immediately at the bottom of the dialog
PARAMETERS USED:

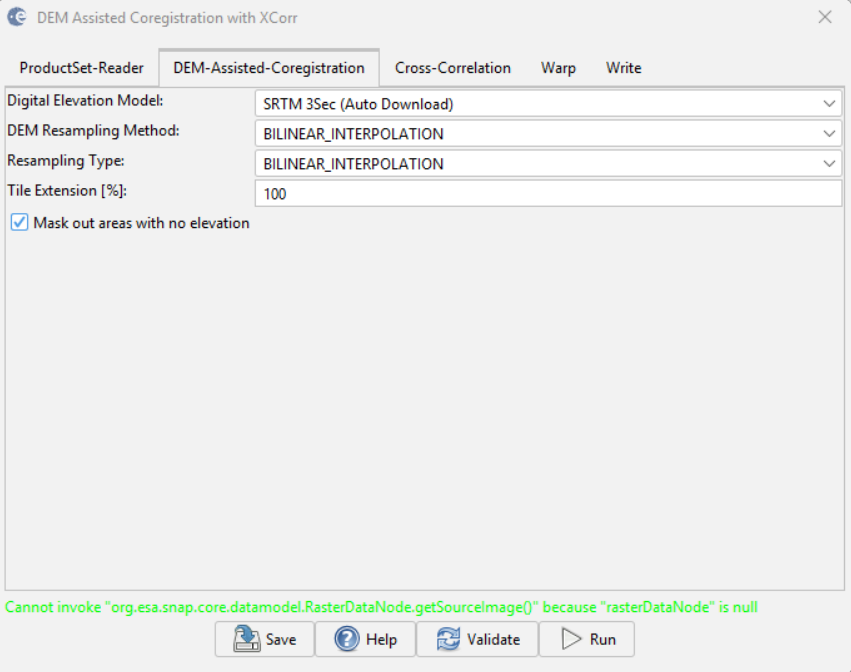

DEM-Assisted-Coregistration Tab:
-
Digital Elevation Model: SRTM 3Sec (Auto Download)
-
DEM Resampling Method: BILINEAR_INTERPOLATION
-
Resampling Type: BILINEAR_INTERPOLATION
-
Tile Extension: 100%
-
✓ Mask out areas with no elevation

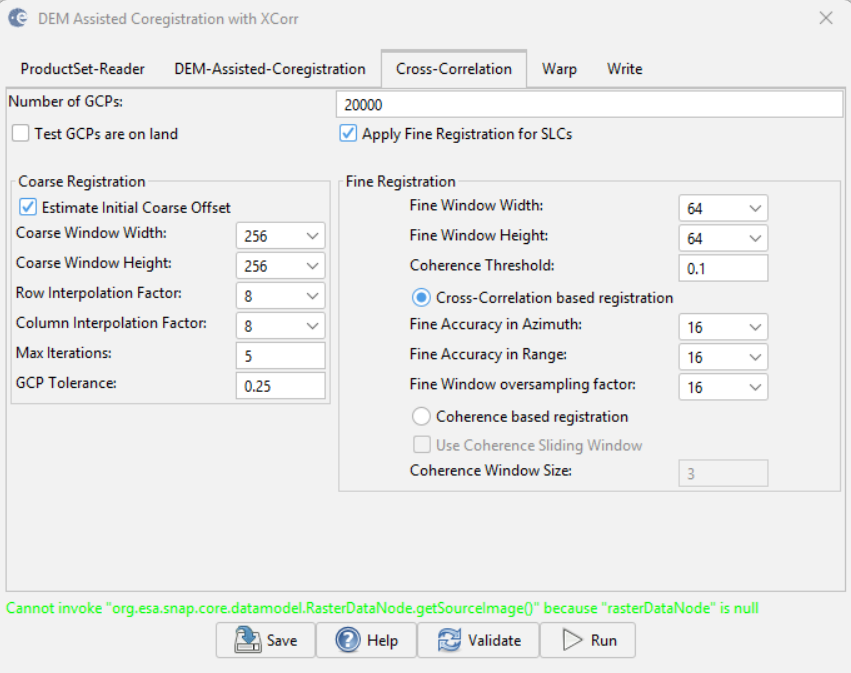

Cross-Correlation Tab:
-
Number of GCPs: 20000
-
✓ Apply Fine Registration for SLCs
-
✓ Estimate Initial Coarse Offset
-
Coarse Window Width/Height: 256
-
Row/Column Interpolation Factor: 8
-
Max Iterations: 5
-
GCP Tolerance: 0.25
-
Fine Window Width/Height: 64
-
Coherence Threshold: 0.1
-
Fine Accuracy in Azimuth/Range: 16
-
Fine Window oversampling factor: 16

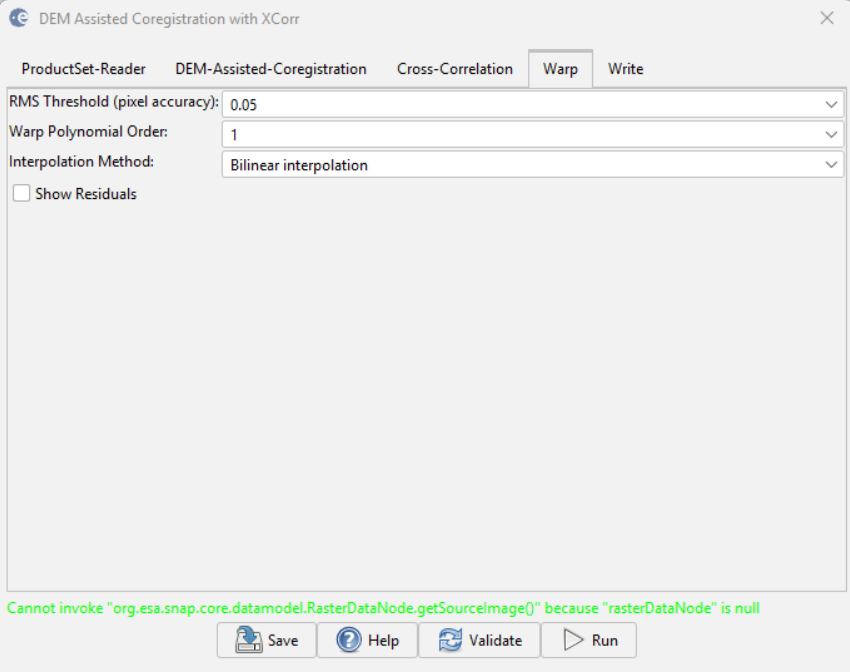

Warp Tab:
-
RMS Threshold: 0.05
-
Warp Polynomial Order: 1
-
Interpolation Method: Bilinear interpolation
WHAT I’VE TRIED:
-
Reduced the number of GCPs (from 20000 to 500) → same error
-
Changed DEM from SRTM 3Sec to SRTM 1Sec → same error
-
Simplified parameters (default values) → same error
-
Used Graph Builder instead of GUI → same error with additional Graph XML error
-
Restarted SNAP and reloaded products → same error
-
Verified products load correctly in Product Explorer (both show bands and metadata)
QUESTIONS:
-
Is this a known bug in SNAP 13 with COSMO-SkyMed SLC data?
-
Could this be related to the BEAM-DIMAP format or product structure?
-
Are there specific requirements for CSK product preprocessing before coregistration?
-
Should I try an older SNAP version (e.g., SNAP 10)?
SCREENSHOTS:
[Attach the 4 screenshots showing: ProductSet-Reader, DEM tab, Cross-Correlation tab,
Warp tab - all displaying the error message]
Any help would be greatly appreciated! I need to process this data for InSAR analysis.
Thank you in advance,
