Pin Placing Tool functionality question

The pin placing tool lets the user drop a pin and view the location (long-lat) coordinates in the Pixel Info tab. Does SNAP provide the capability to add a pin via a long-lat coordinate (like adding an X-Y point to a GIS)?? If so, what is that workflow? If not, can it be added to a future version? Thanks.

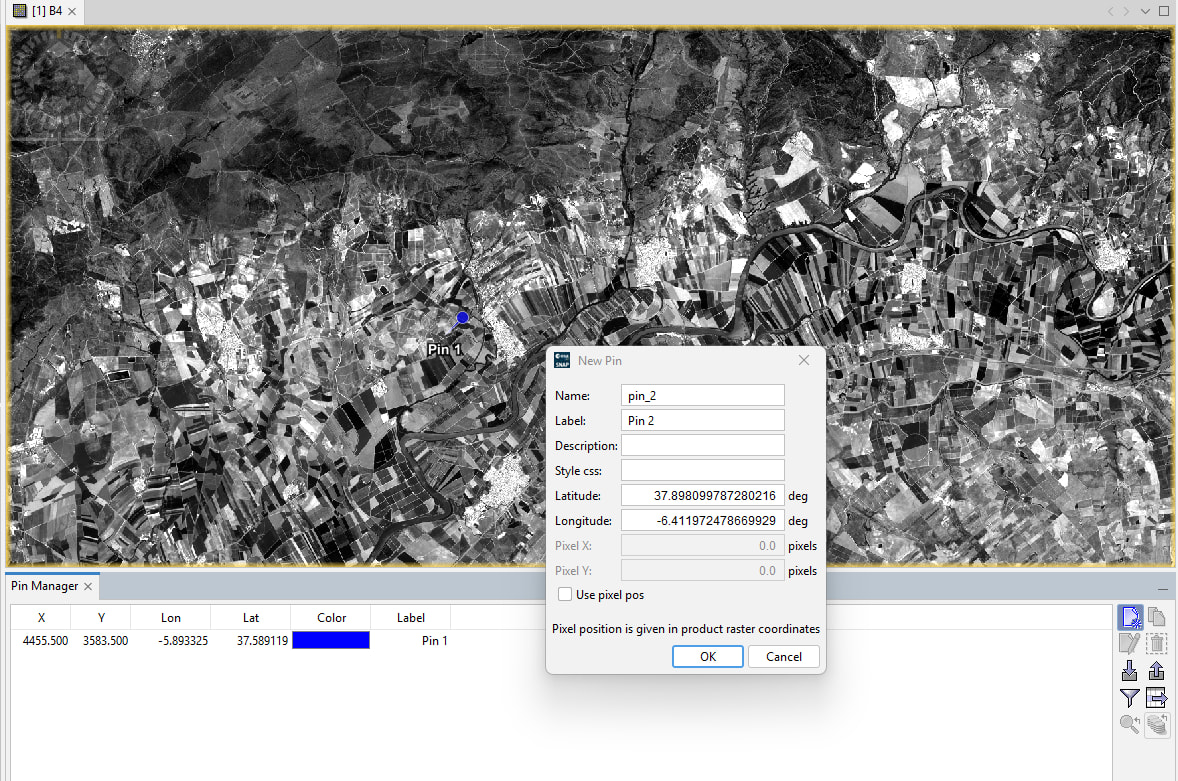

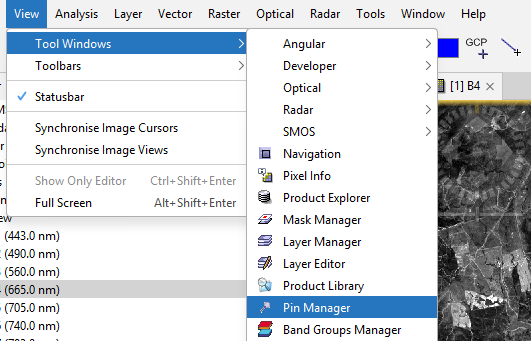

Yes, SNAP supports coordinate-based pin placement via the Pin Manager →New Pin / Edit Pin dialog, where you can enter lat/lon or pixel position manually.

Online help

https://step.esa.int/main/wp-content/help/versions/13.0.0/snap/org.esa.snap.snap.help/desktop/PinManagement.html

1 Like

Thank you very much for that information. Much appreciated!
