S-1 ETAD correction operator issues

Microwave Toolbox
1

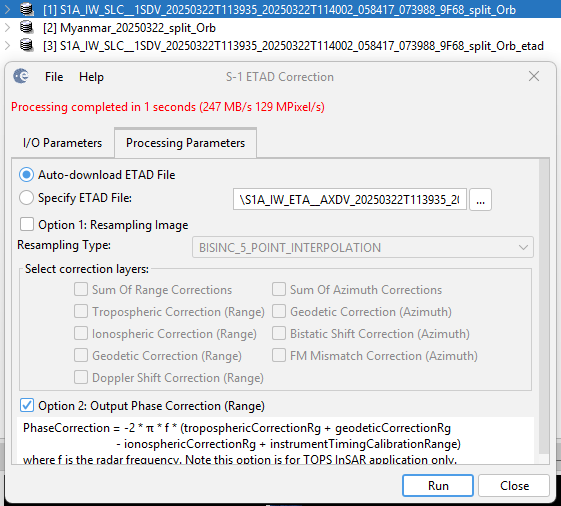

Hello @diana_harosa, I’m using SNAP 13 (microwave toolbox updated to 13.0.1) to run the tutorial. The ETAD correction operator works successfully.

image561×506 21.3 KB

However, if I rename the “split_orb” data before applying ETAD correction, I encounter this error.

image557×505 30.8 KB

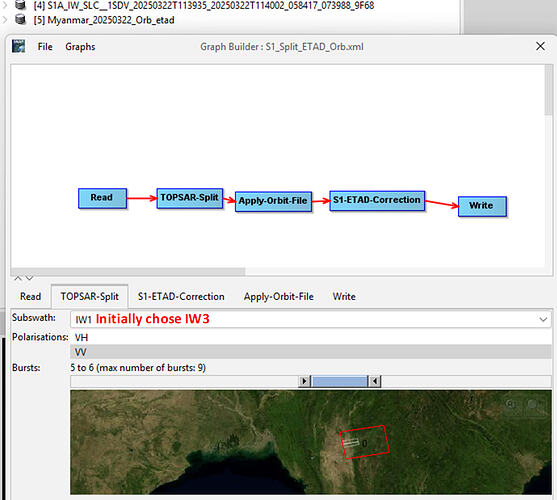

I run the split, orb, ETAD using graph builder and rename the output. It works successfully. But the TOPSAR-Split does not allow to select the required burst (IW3) as it will auto change to IW1 when running the graph.

image1108×993 148 KB

1 Like
SNAP 12 Coming This Week!
2

Jira tickets SNAP-4108 and SNAP-4109 created.

3

Yes, in the TOPSAR-Split tool, no matter how I select the IW number, it automatically sets to IW1. This issue with the TOPSAR-Split tool only occurs in the SNAP13 version. It appears when running the tool standalone, as well as when running it within Graph Builder and batch processing.
