SNAP v7 & Terrain flattening & correction

Hello,
I made SNAP (v7) graph to correct Sentinel-1 images from Finland, consisting of steps: Calibration, Terrain-Flattening, Terrain-Correction and LinearToFromdB. I got error message “Unable to download http://step.esa.int/auxdata/dem/egm96/ to null”. I am using External DEM. SNAP v6 did not have this problem.
What’s wrong?
Best regards, Markus Törmä

1 Like

Same here. Logs are:

INFO: org.esa.snap.engine_utilities.download.DownloadableContentImpl: http retrieving http://step.esa.int/auxdata/dem/egm96/ww15mgh_b.zip
org.esa.snap.core.gpf.OperatorException: Unable to download http://step.esa.int/auxdata/dem/egm96/ to null
        at org.esa.snap.core.gpf.graph.GraphProcessor$GPFImagingListener.errorOccurred(GraphProcessor.java:363)
        at com.sun.media.jai.util.SunTileScheduler.sendExceptionToListener(SunTileScheduler.java:1646)
        at com.sun.media.jai.util.SunTileScheduler.scheduleTile(SunTileScheduler.java:921)
        at javax.media.jai.OpImage.getTile(OpImage.java:1129)
        at javax.media.jai.PlanarImage.getData(PlanarImage.java:2085)
        at com.bc.ceres.glevel.MultiLevelImage.getData(MultiLevelImage.java:64)
        at org.esa.snap.core.gpf.internal.OperatorContext.getSourceTile(OperatorContext.java:407)
        at org.esa.snap.core.gpf.internal.OperatorContext.getSourceTile(OperatorContext.java:393)
        at org.esa.snap.core.gpf.internal.OperatorImage.computeRect(OperatorImage.java:73)
        at javax.media.jai.SourcelessOpImage.computeTile(SourcelessOpImage.java:137)
        at com.sun.media.jai.util.SunTileScheduler.scheduleTile(SunTileScheduler.java:904)
        at javax.media.jai.OpImage.getTile(OpImage.java:1129)
        at com.sun.media.jai.util.RequestJob.compute(SunTileScheduler.java:247)
        at com.sun.media.jai.util.WorkerThread.run(SunTileScheduler.java:468)
Caused by: org.esa.snap.core.gpf.OperatorException: Unable to download http://step.esa.int/auxdata/dem/egm96/ to null
        at org.esa.snap.engine_utilities.gpf.OperatorUtils.catchOperatorException(OperatorUtils.java:415)
        at org.esa.s1tbx.sar.gpf.geometric.RangeDopplerGeocodingOp.computeTileStack(RangeDopplerGeocodingOp.java:1063)
        at org.esa.snap.core.gpf.internal.OperatorImageTileStack.computeRect(OperatorImageTileStack.java:116)
        at org.esa.snap.core.gpf.internal.OperatorImageTileStack.computeTile(OperatorImageTileStack.java:85)
        at com.sun.media.jai.util.SunTileScheduler.scheduleTile(SunTileScheduler.java:904)
        ... 11 more
Caused by: java.io.IOException: Unable to download http://step.esa.int/auxdata/dem/egm96/ to null
        at org.esa.snap.dem.dataio.EarthGravitationalModel96.<init>(EarthGravitationalModel96.java:100)
        at org.esa.snap.dem.dataio.EarthGravitationalModel96.create(EarthGravitationalModel96.java:85)
        at org.esa.snap.dem.dataio.EarthGravitationalModel96.instance(EarthGravitationalModel96.java:77)
        at org.esa.snap.dem.dataio.DEMFactory.getLocalDEM(DEMFactory.java:185)
        at org.esa.s1tbx.sar.gpf.geometric.RangeDopplerGeocodingOp.computeTileStack(RangeDopplerGeocodingOp.java:864)
        ... 14 more

Error: Unable to download http://step.esa.int/auxdata/dem/egm96/ to null

NB the logs might be a bit garbled because of multiple parallel jobs.

Seems to be intermittent - when I ran the same task again, it did not fail. Probably another hickup with SNAP’s aux data downloads.

based on your logfile the EGM96 cannot be downloaded. Have you tried removing this option?

grafik

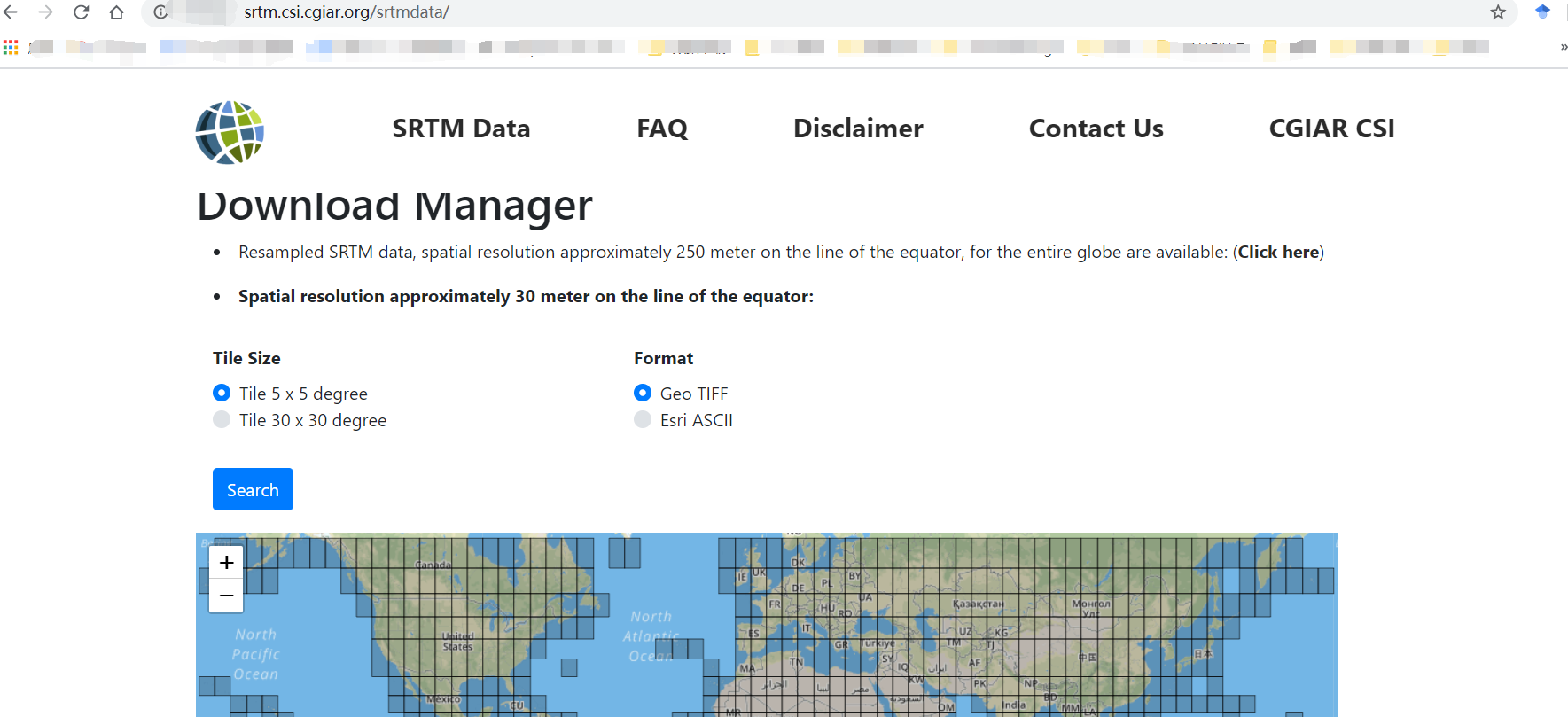

I put the ’ ww15mgh_b.zip’ in the file ‘C:\Users*.snap\auxdata\dem\egm96 ’ , and put the DEM from SRTM website in 'C:\Users*.snap\auxdata\dem\SRTM 3Sec’. The problem is solved.


1 Like

thank you for sharing a solution

Hi
I can’t download Strm,
Can you explain how you did What values are the option of the Elevation Plot and the dem DEM when you are using the strm ?
